Van Stone Flanges

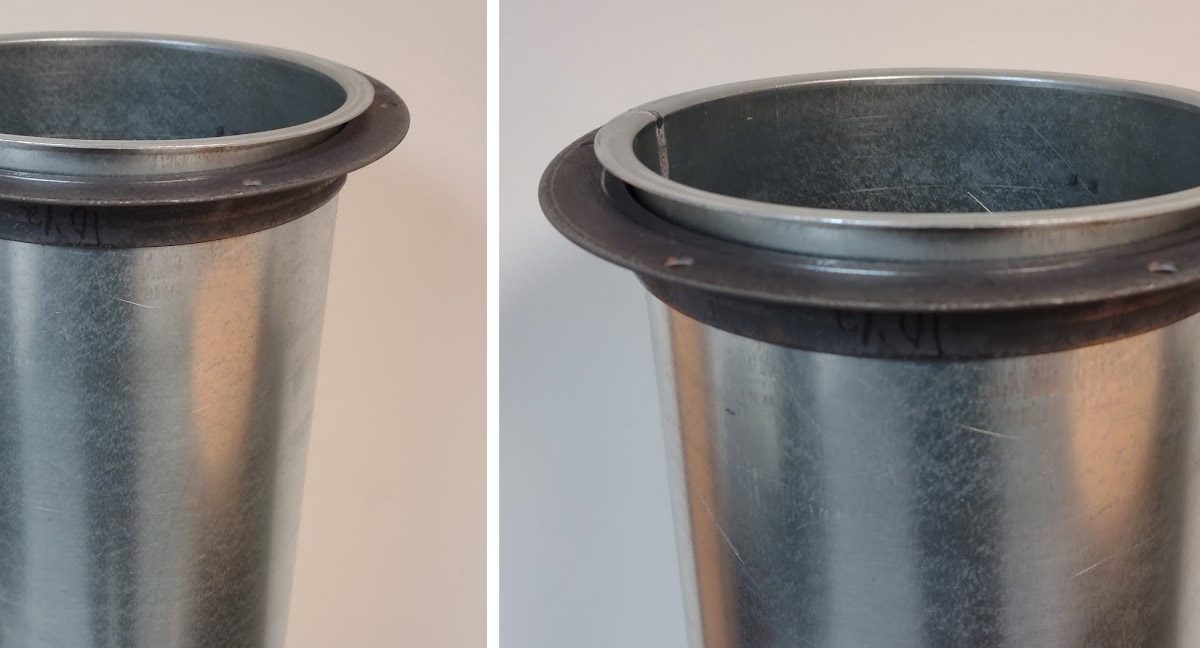

At TCG Duct we recently fabricated another order with Van Stone Flange joints.

What is a Van Stone Flange?

What benefits does a Van Stone flange bring to the table, compared to other standards like welded neck flanges, slip on flanges, and threaded flanges?

Van Stone refers to a two-piece flange with a rotating ring. It’s a type of lap joint flange where the bolt ring on the flange rotates separately from the hub, making bolt alignment easy during installation.

Van Stone flanges are used to join lengths of piping and valves and can be used to join HVAC spiral duct as well.

The Van Stone system is sometimes also referred to as a “Conrac” flange. The Conrac Corporation of California originally developed the Van Stone system as a way to make the manufacturing of pipework more labor and cost efficient, as well as providing a superior technical joint.

According to SMACNA, the major advantage of the Van Stone connection is labor savings. First, it eliminates the need for welding. Second, because the backing flanges rotate for alignment, manhandling of piping to achieve a good fit is also eliminated. Van Stone flanges can be fitted to piping and ductwork during fabrication, offering industrial precision and cost savings, or in the field when necessary.

Benefits and Limitations of Van Stone Flanges

Benefits

  • Labor savings during installation.
  • Connections line up perfectly, and welding can be eliminated (depending up static pressure requirements).
  • Disassembly for inspection is easy and practical.
  • Save costs by using different materials for flange parts that interact with piped substances and parts that do not (i.e. the backing flange and stub end).

Limitations

  • While superior to slip on flanges, Van Stone flanges (non-welded) are not designed for high pressure applications.
  • When selecting gaskets and sealants for airtight joints, operating temperature and piped materials must be carefully considered.
  • The clamping pressure produced by the connecting bolts may not prevent distortion or leakage in large diameter ducts under negative pressure or large loads.

Van Stone flanges are an excellent option for safe, reliable joints with optimal cost-effectiveness. How do you know if they are right for your specific project or application?  Call The Cincinnatus Group at 878-295-8009, or visit our Contact Us page today.
